Manuals • Videos • Wiring

Hidden Door
installation guide.

Select the exact door type before beginning. Each section pairs the correct installation manual with the videos and resources that apply to that unit.

Choose your doorNeed an installer?
!
A hidden door cannot support itself outside the opening.

The unit must be properly positioned, shimmed, and securely fastened inside the opening before it can operate correctly.

Before installation

Know how your door arrives

Most units are designed to reduce on-site assembly, but larger doors are packaged differently so they can be moved safely into the building.

Single DoorsArrive fully assembled with the case molding attached and ready to place into the opening.
Alpha and Mirror unitsUnless otherwise specified by the applicable manual, follow the Single Door installation path and the model-specific finishing instructions.
Double Bookcase DoorsArrive with the frame components unattached. Reassemble the four-piece frame before installation.
BiFold Bookcase DoorsArrive with the frame components unattached so the large unit can be maneuvered into the home.
Installation is designed to be straightforward, but field conditions vary. Hide-A-Way Doors cannot guarantee every purchaser’s ability to install or adjust a unit correctly. Use a qualified installer if you are uncertain.
Door installation paths

Select your door type

Download the manual before opening the crate and keep it available throughout installation.

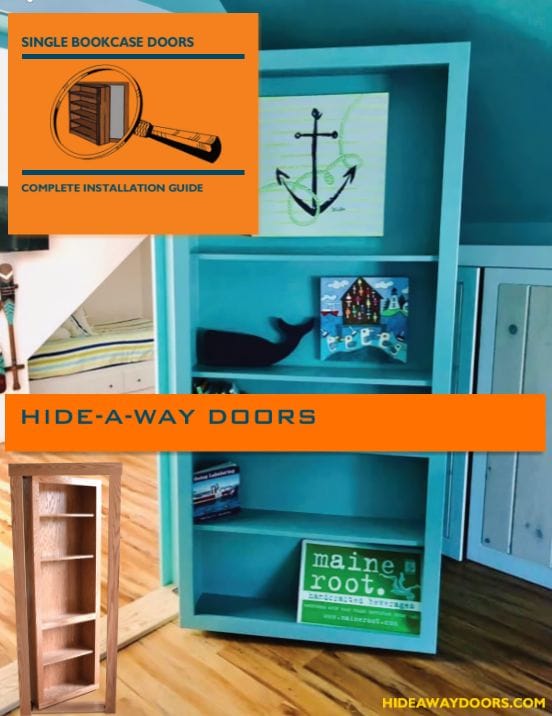

Single hidden door installation manual coverSingle
Arrives assembled

Single Hidden Doors

For Single Bookcase Doors and other fully assembled jamb-mounted units. Place the assembly into the opening, adjust, shim, and fasten as directed.

PDF manualInstall video

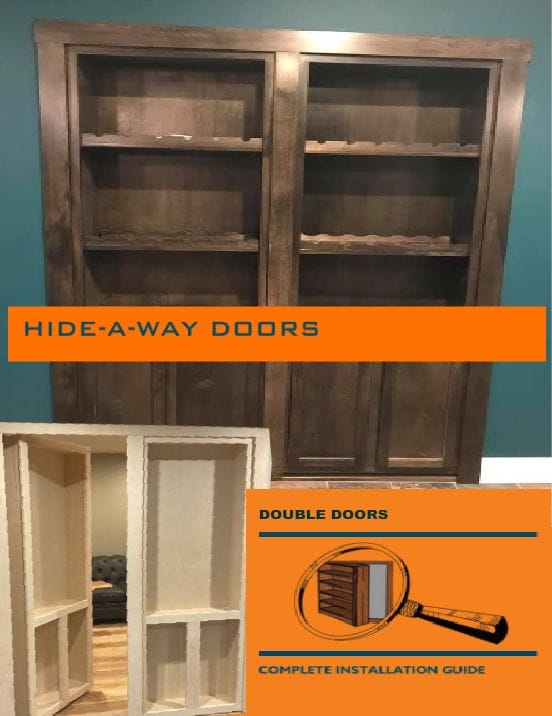

Double hidden door installation manual coverDouble
Frame arrives unattached

Double Hidden Doors

Begin by reattaching the four-piece frame, then follow the Double Door installation procedure for adjustment, shimming, and fastening.

PDF manualInstall videoFrame video

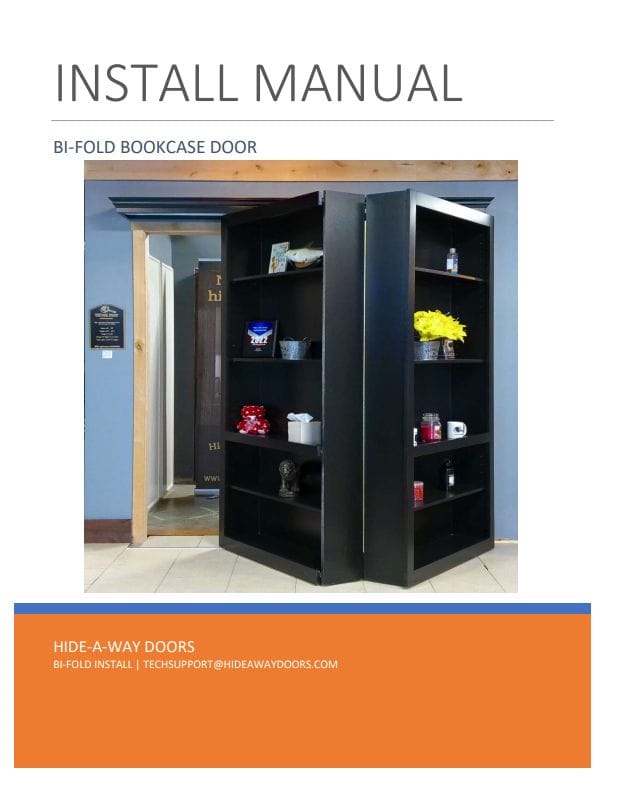

BiFold hidden door installation manual coverBiFold
Frame arrives unattached

BiFold Bookcase Doors

Use only the BiFold manual and installation video for the surface-mounted track box and folding-door assembly.

PDF manualInstall video
Alpha Mirror Door with black trimAlpha Mirror
Model-specific manual

Alpha Mirror Doors

Use the dedicated Alpha Mirror manual and video for its concealed hardware, alignment, and finishing details.

PDF manualInstall video
Start with delivery

Inspect and receive your door correctly

Before moving into installation, review the receiving procedure so the crate, components, and condition of the shipment are handled properly.

Watch: Receiving Your Door
Accessory installation

Openers, latches, and locking systems

These resources supplement the door manual. Install and adjust the door itself before treating an accessory guide as the next step.

Mechanical hardware

Self-Latching Mechanism

Install the supplied mechanical latch after the door is positioned and operating properly.

Video
Hidden opener

Book-Tilt Hardware

Follow the installation guide and video for the Book-Tilt Opener mechanism.

VideoManual

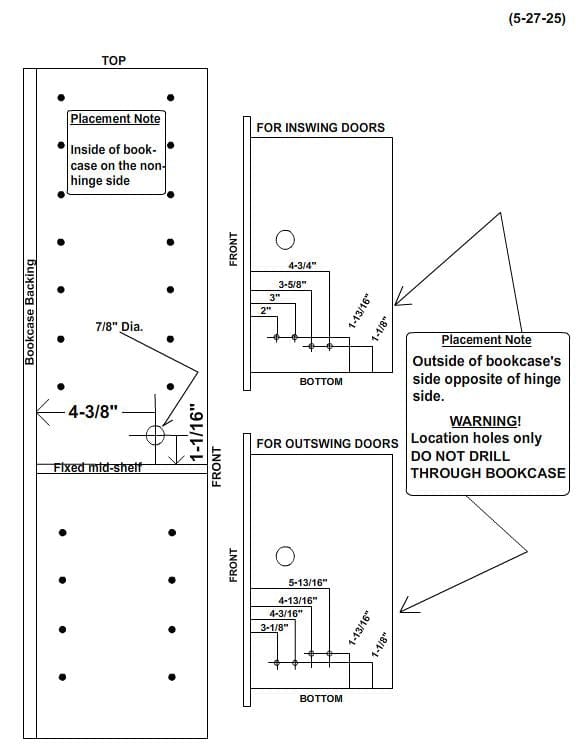

Retrofit lock

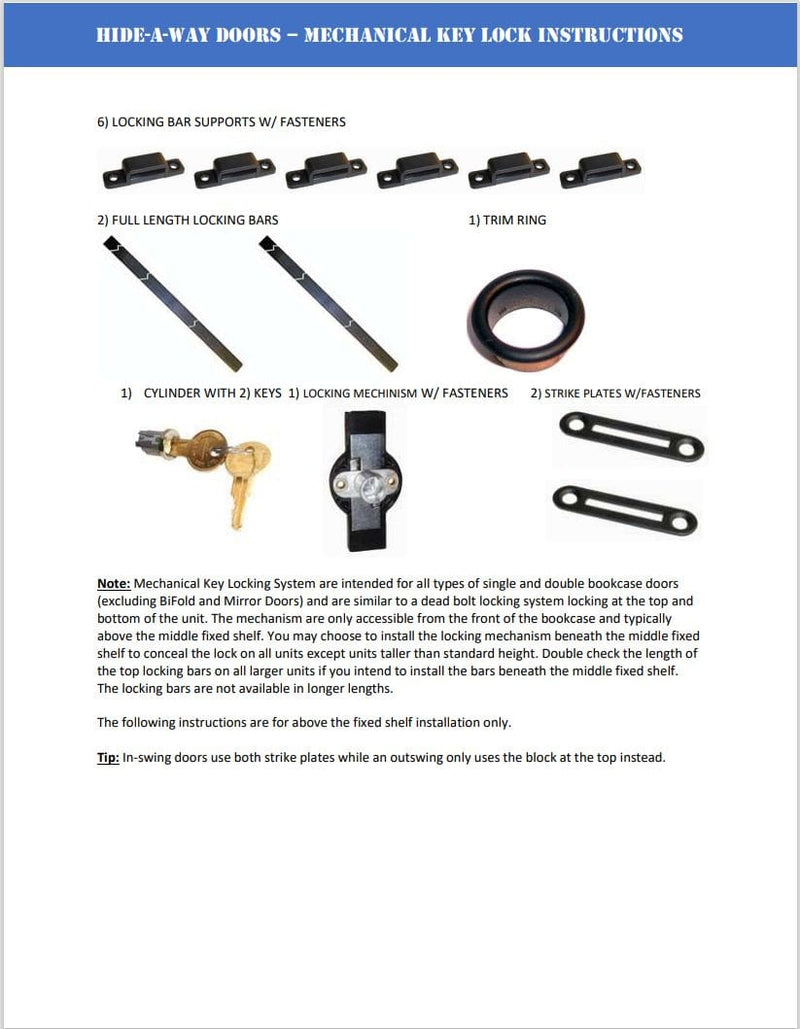

Mechanical Key Lock

Use the dedicated retrofit guide when adding the mechanical locking system.

PDF manual

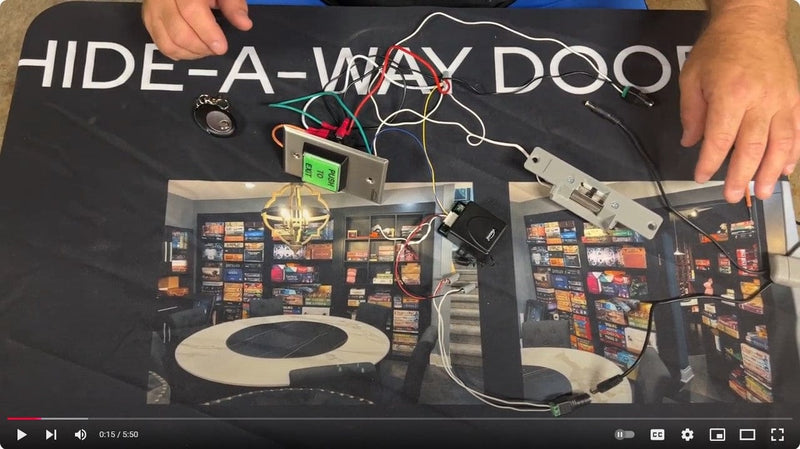

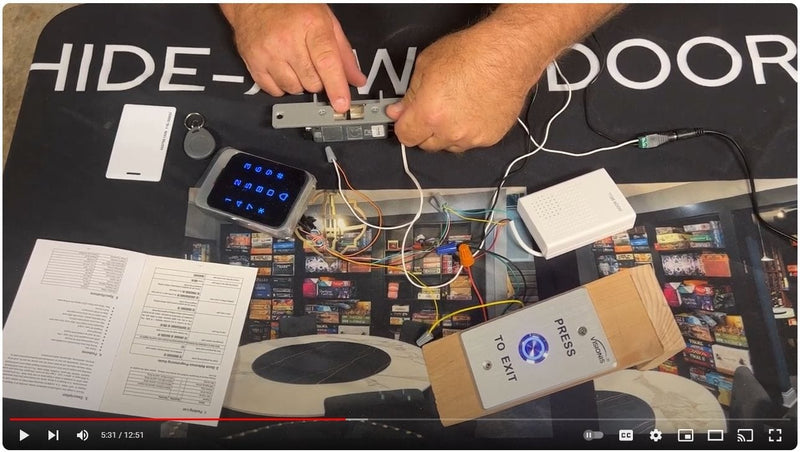

Powered locking

System Basics

Begin with the complete introduction before wiring any powered locking accessory.

Intro video
Alpha finishing

Finish the Alpha Bottom

See how the lower section is completed after the Alpha Door is installed and aligned.

Video
Professional help

National Installation Services

Learn about the national installation option if you do not have a qualified local installer.

Learn more

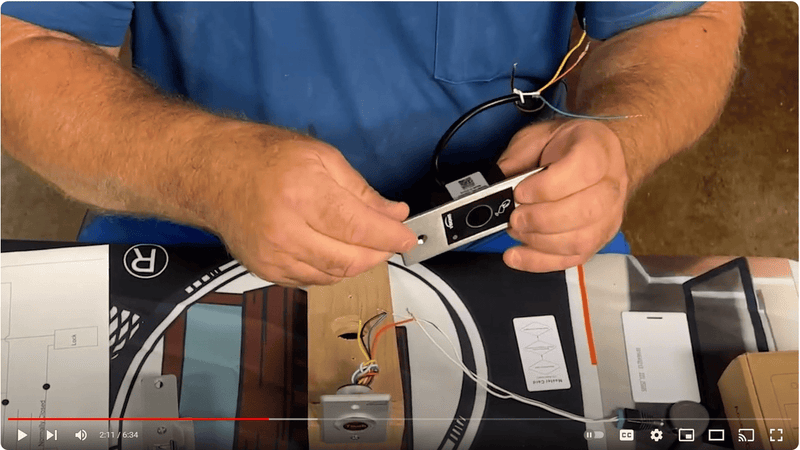

Powered-entry wiring

Choose the correct controller

Each entry device has its own programming video and wiring diagram. Match the guide to the hardware supplied with the order.

Electrical work must be performed safely. Review the powered-locking introduction first and use a qualified professional if you are not comfortable with low-voltage wiring.
Installation FAQ

Before you begin

Does my door arrive ready to install?

Single units generally arrive fully assembled with case molding attached. Double and BiFold Doors arrive with their frame components unattached so the larger door can be moved into the home.

Can the door stand or operate before it is fastened?

No. The door cannot support itself outside the opening. It must be properly shimmed and fastened before it can operate correctly.

Which manual should I use?

Use the manual listed for your exact door category. Double, BiFold, and Alpha Mirror Doors have dedicated manuals and should not be installed from the generic Single Door manual alone.

Is live telephone installation support available?

Installation assistance is not provided through a standing phone-support line. Use the manuals and videos above, or visit the Technical Support page for help.

Need installation help?

Use the right support path.

For troubleshooting, submit the requested information through Technical Support. If you need someone to perform the installation, review the national installation service.

Technical SupportFind installation helpAll how-to videos
